Cisco® ESR6300 Embedded Services Router

ESR6300 in Rugged, HiDAN Enclosure Platform
A high-performance, ruggedized router designed for use in harsh environments

  • Integrated Cisco ESR6300 Embedded Services Router

  • 2 combo Gigabit Ethernet WAN ports

  • 4 Gigabit Ethernet LAN ports, with a PoE and PoE+ ready architecture

  • IP67 and IP69 protection against dust and water ingress

  • Locking cylindrical connectors

  • -40 to +85°C operating temperature

 [view datasheet]

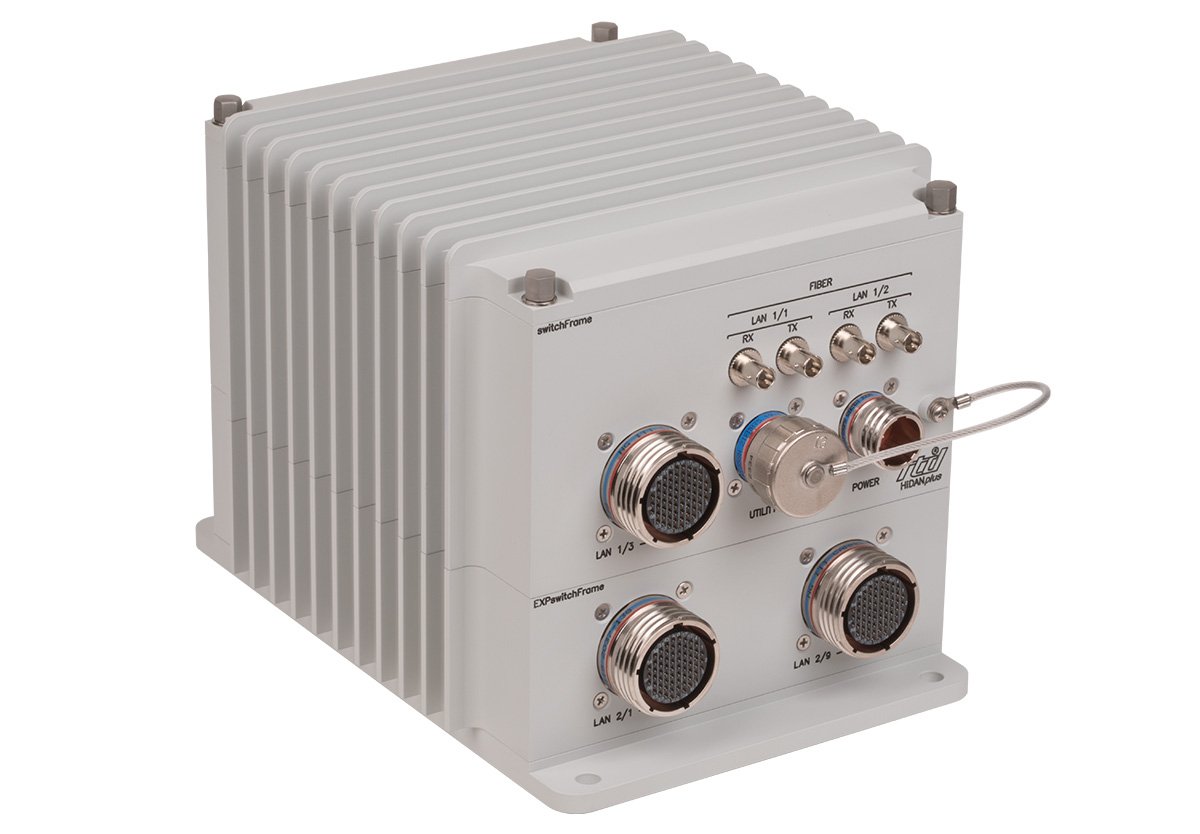

Cisco® ESS 3300 Switch

ESS 3300 Switch in Rugged, HiDANplus Enclosure Platform
A high-performance, ruggedized switch designed for use in harsh environments

  • Integrated Cisco ESS 3300 Switch

  • Two 10 Gigabit Fiber Ethernet connections each with transmit and receive

  • Up to three cylindrical connectors with eight Gigabit Copper Ethernet ports each for a total of 24 switched ports

  • Supports Power over Ethernet (PoE and PoE+)

  • IP67 and IP69 protection against dust and water ingress

  • Locking cylindrical connectors

  • -40 to +85°C operating temperature

 [view datasheet]

Rugged Embedded Mission Computer

Intel® Core™ i7 CPU with ECC Memory
Dual-core processor with on-board advanced data acquisition

  • Part number: HDP1011

  • Intel Core i7 CPU with 8 GB DDR3 SDRAM

  • 60GB surface-mounted SATA flash drive

  • RTD synchronous power supply (ATX3510)

  • IP67 and IP69 protection against dust and water ingress

  • Locking cylindrical connectors

  • -40 to +85°C operating temperature

 [view datasheet]

Rugged Embedded Mission Computer with DAQ

Intel® Core™ i7 CPU with ECC Memory
Dual-core processor with on-board data acquisition and added DAQ module

  • Part number: HDP1051

  • Intel Core i7 CPU with 8 GB DDR3 SDRAM

  • 60GB surface-mounted SATA flash drive

  • 12-bit software configurable data acquisition module (DM25425)

  • RTD synchronous power supply (ATX3510)

  • IP67 and IP69 protection against dust and water ingress

  • Locking cylindrical connectors

  • -40 to +85°C operating temperature

 [view datasheet]

16-Port Gigabit Ethernet Switch

Unmanaged 1000/100/10 Mbps Ethernet
16-port standalone switch

  • Part number: HDP-LAN16

  • BroadCom BCM53115 Unmanaged Ethernet Switches

  • 16 total unmanaged Gigabit Ethernet ports

  • Jumbo Frame Support (up to 9KB)

  • Automatic speed negotiation and MDI crossover

  • IP67 and IP69 protection against dust and water ingress

  • Locking cylindrical connectors

  • -40 to +85°C operating temperature

[view datasheet]

5-Port Gigabit Ethernet Switch

Unmanaged 1000/100/10 Mbps Ethernet
5-port standalone switch

  • Part number: IDAN-eLAN10257HR

  • BroadCom BCM53115 Unmanaged Ethernet Switch

  • 5 unmanaged Gigabit Ethernet ports

  • Jumbo Frame Support (up to 9KB)

  • Automatic speed negotiation and MDI crossover

  • IP54 protection against dust and water ingress

  • 9-pin D-sub receptacles

  • -40 to +85°C operating temperature

[view datasheet]

IDAN-Configured Cisco® Embedded Router

Cisco® ESR6300 in Modular IDAN Configuration
6-port Ethernet router system based on the Cisco ESR6300 ruggedized ESR

  • Standard PC connections

  • Cisco ESR6300 Embedded Services Router

  • RTD synchronous power supply

  • Status LEDs

  • IP54 protection against dust and water ingress

  • Compatible with RTD's full IDAN product line including CPUs, Ethernet switches, data acquisition modules, and other peripheral modules

  • -40 to +85°C operating temperature

IDAN® eBuild™

Intel® Core™ i7 Processor-Based Mission Computer
Multipurpose Rugged CPU for High-Reliability Applications.

  • Part number: IDAN‑eB1000CRD (dual-core)

  • Intel Core i7 CPU with 8 GB DDR3 SDRAM

  • 60GB surface-mounted SATA flash drive

  • RTD synchronous power supply (ATX3510)

  • Expandable IDAN enclosure architecture

  • Standard PC connectors

  • Fanless conduction cooling

  • IP54 protection against dust and water ingress

  • -40 to +85°C operating temperature

[view datasheet on rtd.com]

“There’s more where that came from...”

RTD doesn’t just assemble systems. We design and manufacture all of our systems, including the interior embedded electronics. In addition to single board computers (SBCs) and power supplies, we build other special purpose modules offering WiFi, GPS, USB, FireWire, DSP, storage, mini PCIe, all sorts of data acquisition, and more.

Select from RTD’s full line of compatible products on our parent website, www.rtd.com.
