Rugged 16-Port GigE Switch


HiDANplus® HDP-LAN16 Overview

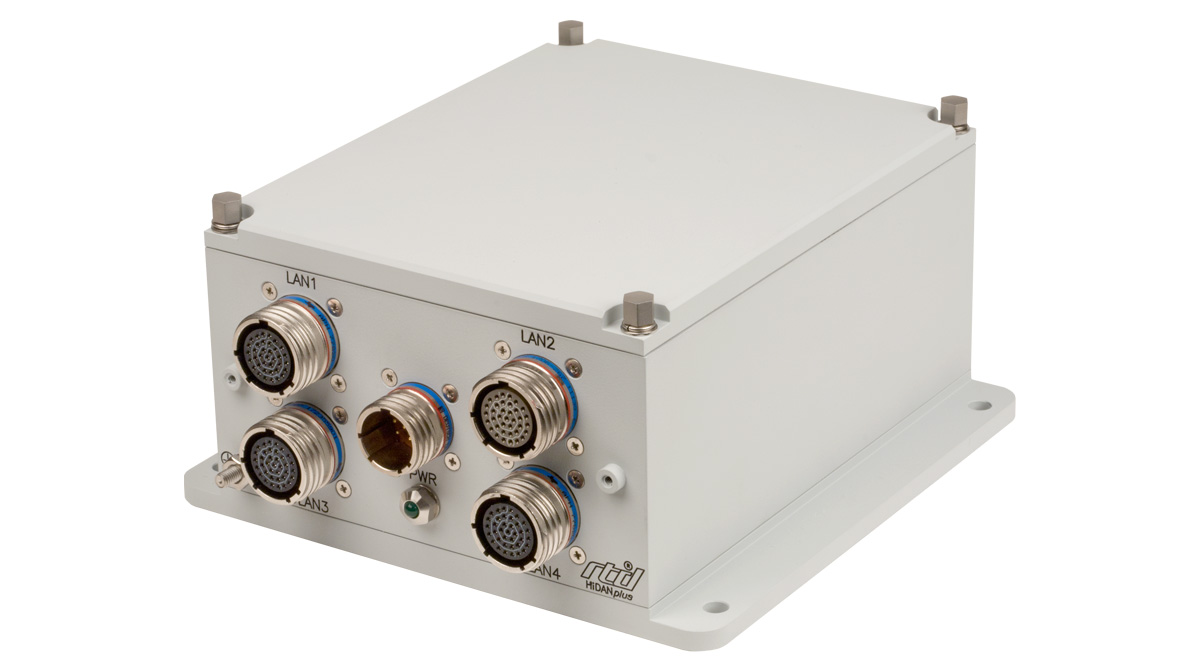

RTD's HDP-LAN16 is a rugged, standalone 16-port Gigabit Ethernet switch. The system is configured using two of RTD's robust 8-port StackNET switches and a synchronous power supply. The HDP-LAN16 has Jumbo Frame Support up to 9KB. Any port can be the uplink, and the remaining links will be downlinks. All ports have automatic speed negotiation and MDI crossover to eliminate the need for crossover cables.

The milled aluminum enclosure with advanced heat sinking and heat fins delivers passively-cooled performance from -40 to +85°C. Integrated tongue-and-groove architecture with EMI gaskets create a watertight solution with excellent environmental isolation. Keyed cylindrical connectors offer easy cable connections while maintaining the integrity of the environmental seal. A comprehensive development cable kit is available.

Key Features

  • 16 total 1000/100/10 Mbps Ethernet Ports
  • LAN35H08 Eight-port GigE host switch
  • LAN35E08 Eight-port GigE expansion switch
  • Automatic speed negotiation and MDI crossover
  • ATX3510 synchronous power supply
  • COTS pre-configured with no additional engineering fees
  • Locking cylindrical connectors
  • Watertight, dust-tight design qualified to IP67 and IP69
  • -40 to +85°C operating temperature
  • ITAR-Free, U.S. Commerce EAR99 Classification

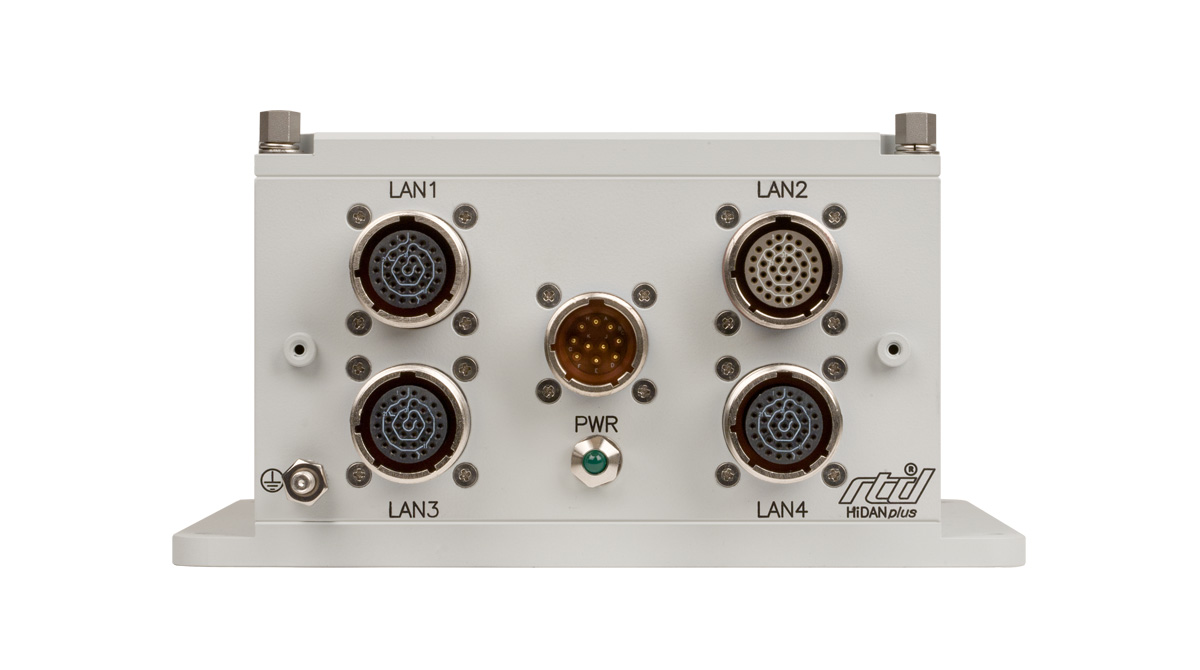

Connector Interface

  • MIL-DTL-38999 Series III cylindrical connectors
  • LAN1, LAN2, LAN3, LAN4: Gigabit Ethernet Ports 1-16
  • PWR: power input, ON/OFF signaling,
    +5/+12 Vdc output, 8-36 Vdc input
  • Power status LED


  • Operating temperature: -40 to +85°C,
    90% humidity non-condensing
  • Storage temperature: -40 to +85°C
  • IP67 and IP69 certified design for dust and water ingress protection
  • Passively convection cooled without forced air, fans, or moving parts


  • Power input requirements: 8-36 Vdc
  • Power consumption: 13.2 W typical

Physical Characteristics

  • 3.70 x 7.35 x 7.30 inches (93.98 x 186.69 x 185.42 mm) - front panel LED and connectors extend beyond these chassis dimensions
  • 5.7 lbs. (2.6 Kg.)
  • Aluminum Alloy - 6061, Temper-T6
  • Exterior finish: light gray polyurethane
    (FED-STD-595 color 36495)

+ What's Included

  • System Components
    • Two 8-port Gigabit Ethernet Switches
    • 190 Watt ATX Power Supply
    • Lid, Base, and Bolts
  • Companion CD with manuals
  • Standard 1-year Warranty
