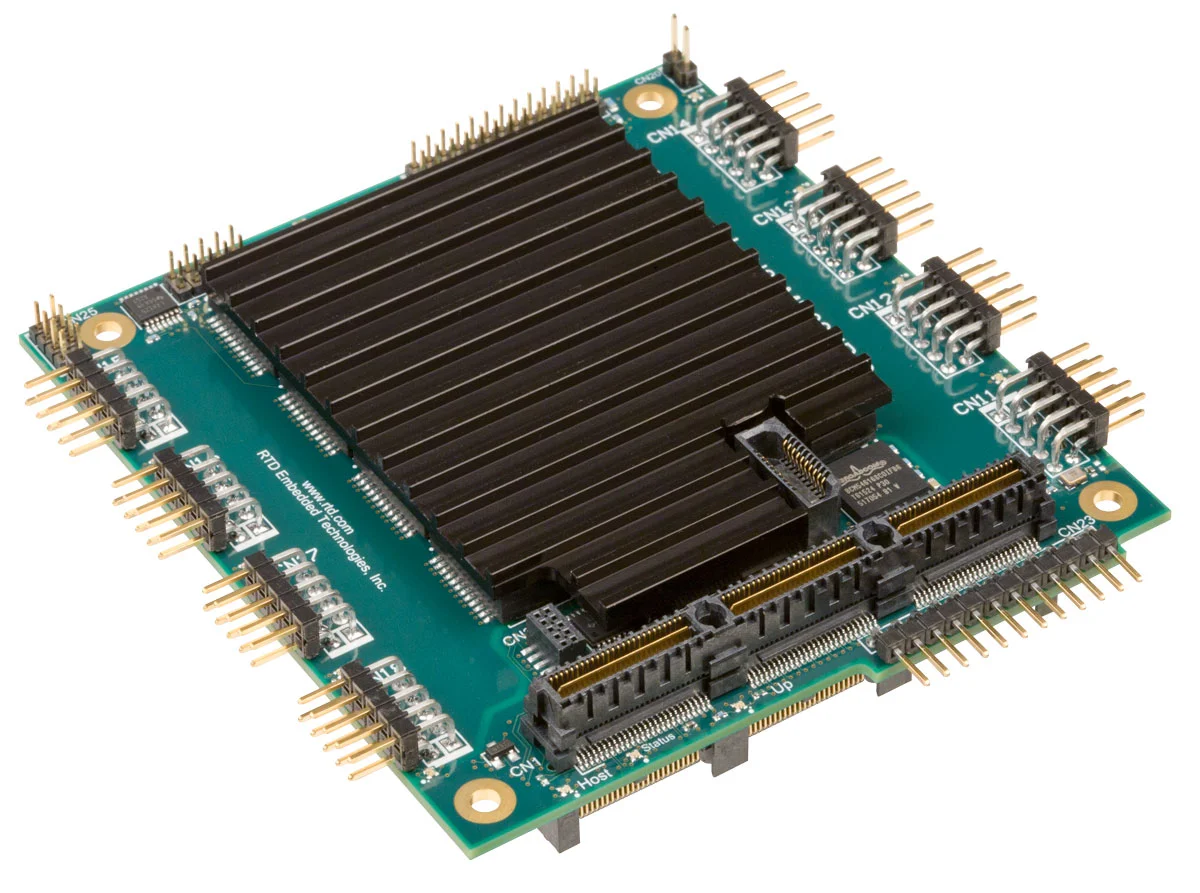

LAN35MH08HR: Managed 8-port GigE Switch

OEM Price: $1395 (add $300 for IDAN configuration)

LAN35MH08HR Overview

The LAN35MH08HR is an 8-port 10/100/1000 Managed Ethernet switch. This switch module has a total of 10 ports: eight ports are available on-board, one port is available to the host CPU through a x1 PCI Express GigE controller, and one port is used as a stacking switch expansion port allowing full compatibility with RTD’s managed and unmanaged StackNET® Ethernet switch family. Additionally, this allows the CPU to use the switch without the need for external cables.

The LAN35MH08HR can also be used as an expandable, standalone 8-port Ethernet switch (using the LAN35ME08HR or unmanaged LAN35E08HR). These GigE switches are available with 10-pin right-angle headers (LAN35MH08HR-D) or with RJ-45 jacks (LAN35MH08HR-RJ).

The onboard CEServices Carrier Ethernet switching software provides a rich Layer 2 switching solution with Layer 3-aware packet processing. All of the industry-standard Managed Ethernet Switch features found in an enterprise rackmount switch are provided, such as VLANs, Spanning Tree, QoS, and SNMP. Additionally, the CESerivces software provides features for carrier and timing-critical networks such as OAM, Synchronous Ethernet, and IEEE 1588. The switch may be configured via a web GUI interface, or a command-line console via USB, Telnet, or SSH.

Key Features

PC104 form factor
PCIe/104 stackable bus structure
- PCIe universal expansion bus (Type 1 or Type 2)
PCIe x1 interface
Eight 1000/100/10 Mbps Ethernet ports
- Plus one host port and one stacking switch expansion port
Onboard tri-color LED for each Ethernet Port
Connectors for external LEDs
Configuration Options
- RJ-45 jacks: LAN35MH08HR-RJ
- 10-pin right-angle headers: LAN35MH08HR-D
Fully-managed Layer 2 Ethernet Switch with Layer 3-aware packet processing
- Support for all major Enterprise switching features such as VLANs, Spanning Tree, QoS, and SNMP
- Manageable via web GUI interface, SSH, Telnet, and Serial Console
- Industry-standard CLI interface
Onboard PCI Express Ethernet Controller for interface to host cpuModule
USB Device Port for Serial Console via onboard USB UART
Passive heat sink included
Stacks with one or more LAN35ME08HR or LAN35E08HR for additional switch ports
Available in stackable, rugged enclosures
Requires only +5 VDC for operation

Specifications

Connector Interface

Stackable Buses
- PCIe universal expansion bus (Type 1 or Type 2)
External I/O Connectors
- Eight 10-pin right-angle headers for Ethernet ports (Part Number: LAN35MH08HR-D)
- Eight RJ-45 jacks with LEDs for Ethernet ports (Part Number: LAN35MH08HR-RJ)
- 10-pin vertical header for USB Serial Console
- 26-pin vertical header for External LEDs, Reset Button input, and GPIO_7 for the clock I/O
- 12-pin right angle header for power (option for standalone use)
Onboard Sockets
- Stack-up switch expansion port

Environmental

Operating temperature: -40 to +85°C,
90% humidity non-condensing
Storage temperature: -55 to +125°C
Passively convection cooled without forced air, fans, or moving parts

Power

Power input requirements: +5 VDC
Power consumption: 5.9 W typical

Physical Characteristics

Dimensions:
- Length (L): 3.775 inches (95.89 mm)
- Width (W): 3.550 inches (90.17 mm)
- Stand-off Height: 0.600 inches (15.24 mm)
Weight:
- LAN35MH08HR‑D: Approximately 0.22 lbs. (0.10 Kg) with heat sinks
- LAN35MH08HR‑RJ: Approximately 0.26 lbs. (0.12 Kg) with heat sinks
MTBF:
- LAN35MH08HR-D: 601,941 hours
- LAN35MH08HR-RJ: 589,750 hours

+ Additional Technical Details

Microsemi VSC7428XJG managed Ethernet Switch
- Integrated 416MHz MIPS CPU
- 4Mbit Packet Memory
- 8K MAC and 4K VLAN Table
- Multistage TCAM Engine
Microsemi CEServices Carrier Ethernet Switching Software
- Port Control:
  - Speed/Duplex settings
  - Jumbo Frame Support (1518-9600 bytes)
  - Port Status and Statistics
- Quality of Service (QoS)
  - Up to 8 traffic classes
  - Shaping/policing per queue and per port
  - Hierarchical MEF compliant policing and scheduling
- Layer 2 Switching:
  - VLAN support, IEEE 802.1Q
  - Spanning Tree Protocol (STP), IEEE 802.1D
  - Rapid Spanning Tree (RSTP), IEEE 802.1w
  - Multiple Spanning Tree (MSTP), IEEE 802.1s
  - Loop Guard
  - Link Aggregation (Static and LACP), IEEE 802.3ad
  - BPDU Guard
  - Error Disable Recovery
  - IGMP snooping
  - DHCP snooping
  - Port Mirroring
- Layer 3 Aware
  - DHCP Option 82 Relay
  - UPNP
  - IPv4 Static Routing (Unicast)
  - IPv6 Static Routing (Unicast)
- Security:
  - Port-based access control based on IEEE 802.1X
  - MAC-Based Authentication
  - VLAN Assignment for authenticated users/devices
  - QoS Assignment for authenticated users/devices
  - Guest VLAN for unauthenticated users/devices
  - RADIUS Authentication, Authorization, and Accounting
  - Limit number of MAC Addresses per port
  - IP-MAC binding restrictions
  - TACACS+ Authentication, Authorization, and Accounting
  - User Authentication for Web and CLI interfaces
  - 15 User Authorization Levels for Web and CLI interfaces
  - Access Control Lists (ACLs) for filtering/policing/port copy
  - IP source guard
- Time Synchronization:
  - Synchronous Ethernet (SyncE) with SSM
  - IEEE 1588v2 with one or two-step clock
  - Peer-to-Peer Transparent Clock
  - End-to-End Transparent Clock
  - Boundary Clock
  - Redundant Masters and Multiple Timing Domains
  - ITU G8265.1 Best Master Selection
  - PTP over IPv4 (unicast and multicast)
  - NTPv4 Client
- OAM and Test:
  - Y.1731
  - IEEE 802.1ag
  - G.8021
- Power and Thermal:
  - PHY power savings (user-configurable)
  - LED power savings (user-configurable)
  - Thermal Protection (user-configurable)
- Management:
  - JSON-RPC
  - DHCP and DHCPv6 Client
  - DHCP Server
  - DNS Client, Proxy
  - Web Interface via HTTP or HTTPS
  - CLI Interface via USB Serial Console, Telnet, or SSHv2
  - IPv6 Management
  - SNMP v1, v2c, v3c (MIBs and Traps)
  - RMON
  - Link Layer Discovery Protocol (LLDP), IEEE 802.1AB, TIA 1057
  - Cisco Discovery Protocol (CDP) – Receive Only
  - sFlow
  - Configuration Download/Upload
Intel I210 PCI Express Ethernet Controller for interface to host cpuModule
Exar XR21B1411IL16 USB UART for Serial Console Interface

+ Connector Interface

Stackable Buses
- PCIe universal expansion bus (Type 1 or Type 2)
External I/O Connectors
- Eight 10-pin right-angle headers for Ethernet ports (Part Number: LAN35MH08HR-D)
- Eight RJ-45 jacks with LEDs for Ethernet ports (Part Number: LAN35MH08HR-RJ)
- 10-pin vertical header for USB Serial Console
- 26-pin vertical header for External LEDs, Reset Button input, and GPIO_7 for the clock I/O
- 12-pin right angle header for power (option for standalone use)
Onboard Sockets
- Stack-up switch expansion port

+ Software

Managed Switch Firmware
- Field updatable via network or USB Serial Console
- Firmware updates provided free of charge
USB UART Serial Console
- Drivers provided for Windows 7
- Natively supported in Windows 10
Ethernet Controller Drivers
- Drivers provided for Windows 7 (32-bit and 64-bit)
- Open source Linux drivers included in the kernel
- Drivers included in most modern operating systems. Check with the OS manufacturer.

+ What's Included

Ethernet switch module
PC104 stand-off kit
Companion CD with manual and example programs
RTD Engineering technical support
Standard 1-year Warranty

+ Recommended Accessories

LAN35ME08HR: 8-port managed Ethernet expansion board
LAN35E08HR: 8-port unmanaged Ethernet expansion board
XK-CM83: Ethernet Adapter Cable
XK-CM123: USB Serial Console Cable
