Rugged Embedded Mission Computer




HiDANplus® HDP1011 Overview

RTD’s HDP1011 embedded computer system provides a robust Commercial-Off-the-Shelf (COTS) solution enabling rapid uptime for mission-critical applications. The system includes a high-reliability Intel Core i7 dual-core single board computer and a robust synchronous power supply. We think of this HiDANplus as our "base" model: CPU, power, I/O connections.

Customers who need additional functionality to meet special data acquisition or networking requirements can build upon this system; the enclosure affords room for additional embedded modules. Front-panel space is available for the connectors that would be appropriate interfaces to the add-on cards.

The milled aluminum enclosure with advanced heat sinking and heat fins delivers passively-cooled performance from -40 to +85°C. Integrated tongue-and-groove architecture with EMI gaskets create a watertight solution with excellent environmental isolation. Keyed cylindrical connectors offer easy cable connections while maintaining the integrity of the environmental seal. A comprehensive development cable kit is available.

Key Features

  • Intel® Core i7 Dual-Core Processor with ECC Memory

  • 8GB surface-mount DDR3 SDRAM

  • 60GB surface-mount industrial SATA flash drive (standard)

  • ATX3510 synchronous power supply (194.8 W combined output)

  • Room for additional PC104-format modules (PCI or PCI Express)

  • COTS pre-configured with no additional engineering fees

  • Locking cylindrical connectors

  • Watertight, dust-tight design qualified to IP67 and IP69

  • -40 to +85°C operating temperature

Specifications

Connector Interface

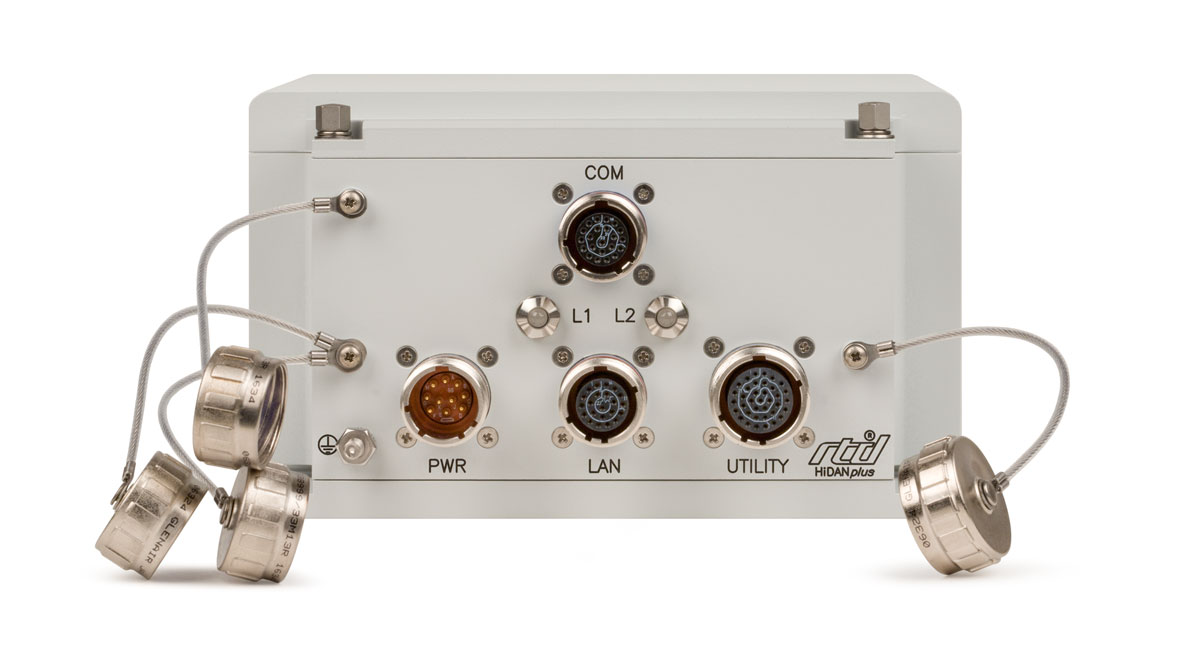

  • MIL-DTL-38999 Series III cylindrical connectors with plug protection covers

  • COM: 2 full, 4 partial

  • PWR: power input, ON/OFF signaling,
    +5/+12 Vdc output, 8-36 Vdc input

  • LAN: dual Gigabit Ethernet

  • UTILITY: 4 USB, SVGA, CPU reset

  • L1: CPU status LED

  • L2: user-programmable LED

Environmental

  • Operating temperature: -40 to +85°C,
    90% humidity non-condensing

  • Storage temperature: -40 to +85°C

  • IP67 and IP69 certified design for dust and water ingress protection

  • Passively convection cooled without forced air, fans, or moving parts

Power

  • Power input requirements: 8-36 Vdc

  • Power consumption: 17 W typical, 32 W max

Physical Characteristics

  • 4.92 x 7.35 x 7.30 inches (124.97 x 186.69 x 185.42 mm) - front panel LEDs and connectors extend beyond these chassis dimensions

  • 6.8 lbs. (3.08 Kg.)

  • Aluminum Alloy - 6061, Temper-T6

  • Exterior finish: light gray polyurethane
    (FED-STD-595 color 36495)

+ Intel Core i7 Based CPU Details

  • Intel Core i7 3517UE with ECC Memory
    • Dual-Core
    • 1.7 GHz Clock Speed
    • 2.8 GHz Max Turbo Frequency
    • 105°C Max. Core Temperature
  • 8GB Dual-Channel DDR3 SDRAM (Surface-Mounted)
    • Robust Error Code Correction (ECC)
  • 60GB standard surface-mounted industrial-grade SATA flash drive
  • Eight x1 PCIe Links
  • Three x4 PCIe Links
  • Five SATA Ports
  • Four Serial Ports (RS-232/422/485)
    • Four USB 3.0 Ports on Type 2 expansion buses
  • Can also be used with USB 2.0 devices
  • Three USB 2.0 Ports
  • Dual Gigabit Ethernet
  • Analog VGA
  • Embedded DisplayPort (eDP) 1.1a
    • DisplayPort, DVI, and HDMI
    • Supports 4K resolution
    • Includes Audio
  • Advanced Digital I/O (aDIO)
  • Trusted Platform Module (TPM) available as a separate ordering option
    • Fully compliant to the Trusted Computing Group (TCG) Trusted Platform Module (TPM) version 1.2 specification
    • Provides for secure storage of cryptographic keys
  • View the CMA34CRD CPU board-level datasheet

+ ATX3510 Power Supply Details

  • Input Voltage Range: 8-36V
  • 194.8 Watts maximum output power
  • Outputs
    • +5 Vdc at 16.8 amps
    • +12 Vdc at 8.4 amps
    • +5 Vdc Standby at 2.0 amps
    • +3.3 Vdc at 2.0 amps
  • ATX signals
    • +5VSB
    • PS_ON#
    • PWRGOOD
  • Efficiency as high as 90%
  • Reverse voltage protection to -40V
  • Input over-current protection
  • Input over voltage protection clamps to 36V
  • Output over-current protection
  • Remote ON/OFF function
  • Synchronized supplies to reduce noise
  • Spread spectrum capable
  • No Electrolytic caps
  • View the ATX3510 power supply board-level datasheet

+ What's Included

  • System Components
    • Single Board CPU
    • mSATA carrier with speaker and battery
    • 190 Watt ATX Power Supply
    • Lid, Base, and Bolts
  • Companion CD with drivers, Datalight ROM-DOS, and manuals
  • Standard 1-year Warranty

+ Options

  • Development Cable Kit
  • Removable 2.5 inch SATA drive (hinged door frame adds 1.331 inches to the overall system height)
  • Customization: RTD can create "modified" or "tailored" systems with customer-determined I/O connectors and pinouts. The HDP1011 includes room for one additional PC104-sized module inside the enclosure. If you'd like functionality that isn't shown here, call us. These systems are the "base units" upon which many other configurations can be built.
